Product Description

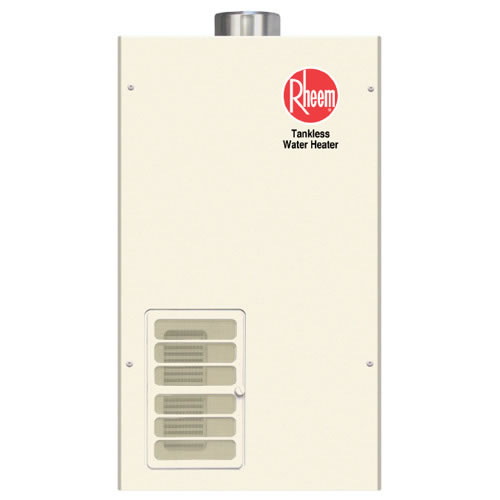

The Rheem RTG-74PVN natural gas tankless water heater supplies 2-3 major hot water applications at a time. It can be vented either through the wall or roof and can be connected in series to increase hot water flow.
This unit qualifies for the Federal Government's $300 Tax Credit.
The RTG-74PVN can supply 7.4 gallons per minute of hot water at a 45 degree temperature rise. It requires a 4" stainless steel exhaust vent. This tankless water heater carries a 10 year limited warranty on the heat exchanger and a 3 year limited warranty on parts. The ignition is electronic and the unit comes with a 120V power cord. For installations above 3,280 ft a high altitude chip is required.
The Rheem
RTG74PVN model differs from the RTG74DVN model in that this unit has an internal combusion air meaning it does not require a 2nd hose pulling air in from the outside. The
RTG74DVN requires a 2nd hose pulling air from the outside.
Note: This model can be linked with another RTG-74PVN in series with the EZ-Link cable (RTG-20040) for high demand applications as the two units would operate as one with double the water flow. When 3 to 20 units are connected in series a manifold controller, cables and/or control boards are required.
Other:
Inlet Gas Pressure must not exceed 10.5” W.C. for natural gas (14” W.C. for LP propane)
Unit does not include a pressure relief valve or the wiring to connect the remote
thermostat
A remote control thermostat is included with all models (100 F - 140 F setpoint range) Requires 18 AWG, 2 conductor thermostat wire for remote control connection. Wire not included.
Heating Capacity:
- 90° F rise @ 3.7 gpm
- 80° F rise @ 4.1 gpm
- 70° F rise @ 4.7 gpm
- 60° F rise @ 5.5 gpm
- 50° F rise @ 6.6 gpm
- 45° F rise @ 7.4 gpm
Technical Specifications:
- # Of Applications: 2-3 showers concurrently
- Natural Gas
- Water Connection: 3/4" NPT
- Gas Connection: 3/4" NPT
- Energy Factor: .82
- Temperature Range: 100 - 140 degrees
- Ignition: Electric
- BTU: 199,900
- Dimensions: H 25 ¾” x W 14 7/8” x D 11 1/8”
- Weight 55 lbs.
- 10 Year Warranty; 3 Year on heat exchanger
- Comes with remote control for thermostat
Venting:
Diameter: 4 inch
Material: Stainless Steel (AL29-4C) sealed
Minimum length: 1 ft. if used with 90 degree elbow, wall thimble and exhaust vent hood.
Maximum length: 47.6 ft. (10.5m) with one 90 degree elbow. Less 5 ft. for each additional 90 degree elbow (2.5 ft for each 45 degree elbow)
Minimum clearances for installation:
Top = 12”
Vent = 2”
Front = 12”
Side = ½”
Bottom = 12”
Back = 0”
Energy Requirements
- Ignition: Electric
(120 V)
- Power
Natural Gas: 199,900 BTU
- Energy Factor: .82
Sizing a Tankless Water Heater
Tankless water heaters are rated by the maximum temperature rise possible at a given flow rate. Therefore, to size a demand water heater, you need to determine the flow rate and the temperature rise you'll need for its application (whole house or a remote application, such as just a bathroom) in your home. It is important to note that you should never try and
save money by undersizing your tankless water heater.
Step 1: Determine the maximum number of devices you want to run and their total flow rate. Then, add up their flow rates (gallons per minute). This is the desired flow rate you'll want for the demand water heater. For example, let's say you expect to
simultaneously run a hot water faucet with a flow rate of 0.75 gallons per minute and a shower head with a flow rate of 2.6 gallons per minute. The flow rate through the demand water heater would need to be at least 3.26 gallons per minute. To reduce flow rates, install low-flow water fixtures.
Step 2: Determine required temperature rise. To determine temperature rise, subtract the incoming water temperature from the desired output temperature. Unless you know otherwise, assume that the incoming water temperature is 50ºF (By using a low
temperature assumption you ensure that you will not undersize your tankless unit. If you live in a warm climate your water temperature will likely be much higher.) For most uses, you'll want your water heated to around 105 - 115 degrees. In this example, you'd need a demand water heater that produces a temperature rise of 55 degrees.
Step 3: Sizing Example: An average shower will be between 104 and 106 degrees and
uses 2.6 gallons of water. Assuming your water temperature is 40 degrees coming into your home, and you want to produce enough hot water to run 2 showers at the same time, what temperature rise would you need to produce to accomplish this?
Answer: You'll need to raise the incoming water temperature from 40 degrees to 105.
You'll need to be able to heat at least 5.2 gallons of water. So you'll need a tankless water heater that can produce at least a 60 degree rise in temperature at 5.2 gallons per minute.
Flow Rates
How much hot water do you need at one time? Do you need to run 2 showers at the same time or maybe a shower and a couple sinks? The chart below shows the range of water usage range and average water temperatures for various fixtures. We suggest using 2.5 gpm for a shower and 1.0 gpm for a bathroom as a reference point in determining your total simultaneous water needs.
| Fixture |
Average Flow GPM
|
Avg. Temp.
|
| Tub |
4.0 |
102 F |
| Shower |
2.5 - 3.0 |
104 F |
| Washing Machine |
2.0 |
120 F |
| Dishwasher |
1.5 |
110 F |
| Kitchen Sink |
1.5 |
110 F |
For example, if you are running 2 showers at the same time, you will need 5 gallons of hot water per minute from the tankless water heater. If you were running a shower and the washing machine at the same time, you would need 4.5 gallons per minute from the water heater. In either of these situations, you will want to size the unit that meets or exceeds how much hot water you need at the same time.
Note: tankless water heaters are intended to heat potable (drinking) water only and the inlet water to a tankless unit should not be pre-heated.
Other Sizing Notes
Gas tankless water heaters are able to produce a larger
temperature rise per gpm than electric models. Most demand water heaters are rated for a variety of inlet temperatures. Typically, a 70ºF water temperature rise is possible at a flow rate of 5 gallons per minute through gas-fired demand water heaters and 2 gallons per minute through electric ones. Faster flow rates or cooler inlet temperatures can sometimes reduce the water temperature at the most distant faucet.
Next, you should look at your ambient
incoming water temperature. If you live in a
cold climate, like New York, your incoming
water temperature will likely be much lower
than if you live in a warm climate, like
Florida. Your best bet is to find out how
much temperature rise you will need in order
for your hot water to reach the desired
heat. If the ambient incoming water
temperature for your shower is 65°F, you are
using a 2.0 gpm shower, and you want to
raise that temperature to 115°F, you will
want to look for a Tankless Water Heater
that will provide at least a 50°F
temperature rise at 2.0 gpm (115°F - 65°F =
50°F). However, if your anticipate
additional simultaneous demand, such as the
hot water from a sink being used while
someone is showering, you will need to add
the sink's gpm to the shower's gpm in order
to determine your overall gpm demand and
then find the temperature rise necessary to
meet your overall needs.
!!!!!!!!!!!!!!!!!!!

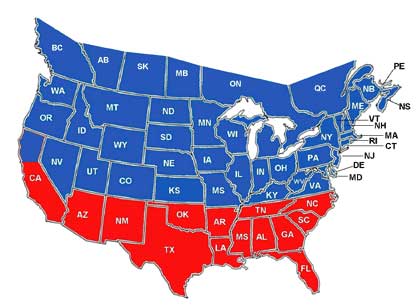

- Warm Climates
!!!!!!!!!!!!!!!!!! - Cool
Climates
|
|
|
  |
 |
